Port & facilities
Built for every cargo
Nine specialised berths, deep-water access and integrated storage along 4.5 km of industrial waterfront.
9
Specialised berths
4.5km
Shoreline
2.5km
Liquid berth length
1,517,900m³
Liquid storage capacity
Liquid cargo jetty
Seven berths (1, 2, 3, 4, 5, 8 and 9) handle the loading and discharge of petroleum products, edible oils, chemicals and renewable oils. Every berth is linked by dedicated pipelines to port-user terminals including Dialog Terminals Langsat, Langsat Bulkers, Langsat Bitumen Terminal, Musim Mastika, Norman Process Oil and Menajaya, and is equipped with marine loading arms or cargo hoses.
Schematic — not to scale.
Liquid berth
Berth 1
- Length
- 480 m
- Alongside depth
- 15.0 m
- Max. vessel
- 120,000 DWT
Liquid berth
Berth 2
- Length
- 140 m
- Alongside depth
- 9.0 m
- Max. vessel
- 5,000 DWT
Liquid berth
Berth 3
- Length
- 284 m
- Alongside depth
- 15.0 m
- Max. vessel
- 45,000 DWT
Liquid berth
Berth 4
- Length
- 165 m
- Alongside depth
- 9.0 m
- Max. vessel
- 15,000 DWT
Liquid berth
Berth 5
- Length
- 310 m
- Alongside depth
- 15.0 m
- Max. vessel
- 80,000 DWT
Multipurpose berth
Berth 6
- Length
- 545 m jetty (shared)
- Alongside depth
- 11.0 m
- Max. vessel
- 45,000 MT
- Load bearing
- 5 t/m²
Multipurpose berth
Berth 7
- Length
- 545 m jetty (shared)
- Alongside depth
- 11.0 m
- Max. vessel
- 45,000 MT
- Load bearing
- 3 t/m²
Liquid berth
Berth 8
- Length
- 310 m
- Alongside depth
- 14.5 m
- Max. vessel
- 60,000 DWT
Liquid berth
Berth 9
- Length
- 410 m
- Alongside depth
- 15.0 m
- Max. vessel
- 110,000 DWT
| Berth | Length | Alongside depth | Max. vessel |
|---|---|---|---|
| Berth 1 | 480 m | 15.0 m | 120,000 DWT |
| Berth 2 | 140 m | 9.0 m | 5,000 DWT |
| Berth 3 | 284 m | 15.0 m | 45,000 DWT |
| Berth 4 | 165 m | 9.0 m | 15,000 DWT |
| Berth 5 | 310 m | 15.0 m | 80,000 DWT |
| Berth 8 | 310 m | 14.5 m | 60,000 DWT |
| Berth 9 | 410 m | 15.0 m | 110,000 DWT |

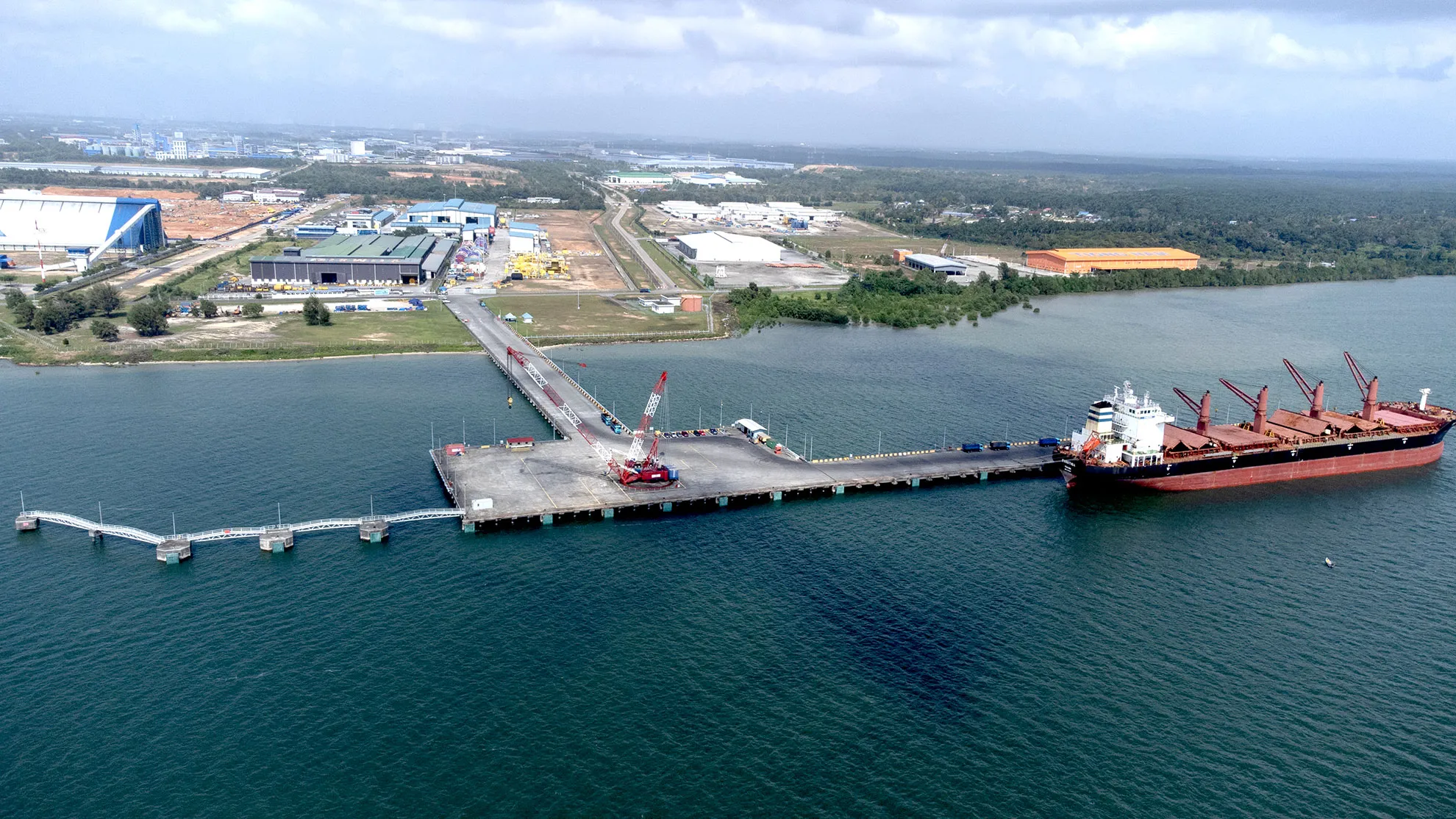

Bulk & break-bulk jetty
Berths 6 and 7 offer 11.0 m alongside depth and are engineered for heavy loads typical of oil and gas, steel and project cargo — accommodating heavy-lift and oversized cargo vessels up to 50,000 tonnes displacement. Every operation is supported by our marine team and registered stevedores.
- Alongside depth
- 11.0 m
- Capacity
- 45,000 MT each
- Load bearing
- 5 t/m² (Berth 6) · 3 t/m² (Berth 7)
- Jetty length
- 545 m

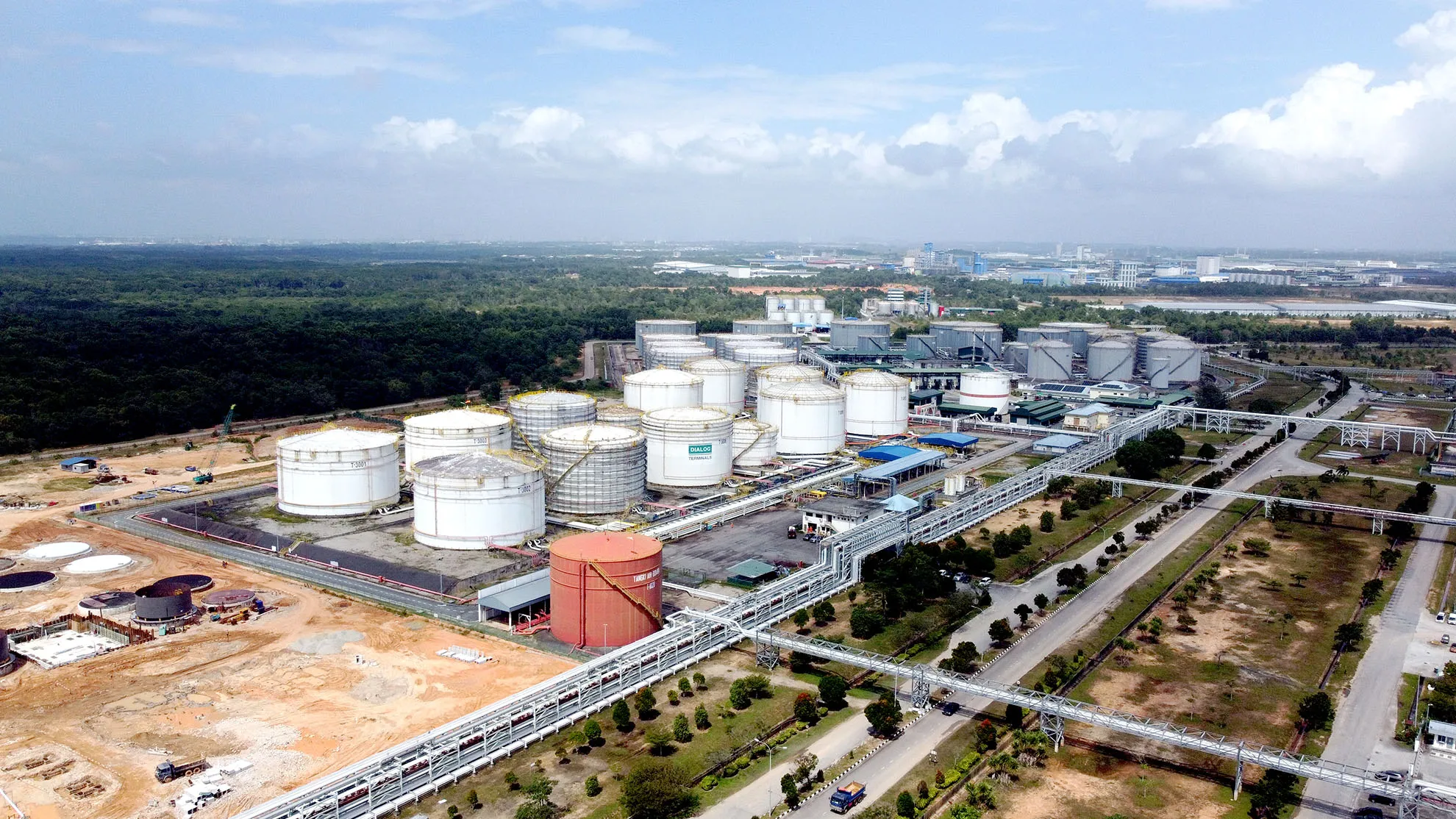

Liquid storage terminals
Independent terminal operators within the port handle petroleum, chemicals, edible and renewable oils, with a combined capacity of 1,517,900 m³.
Storage

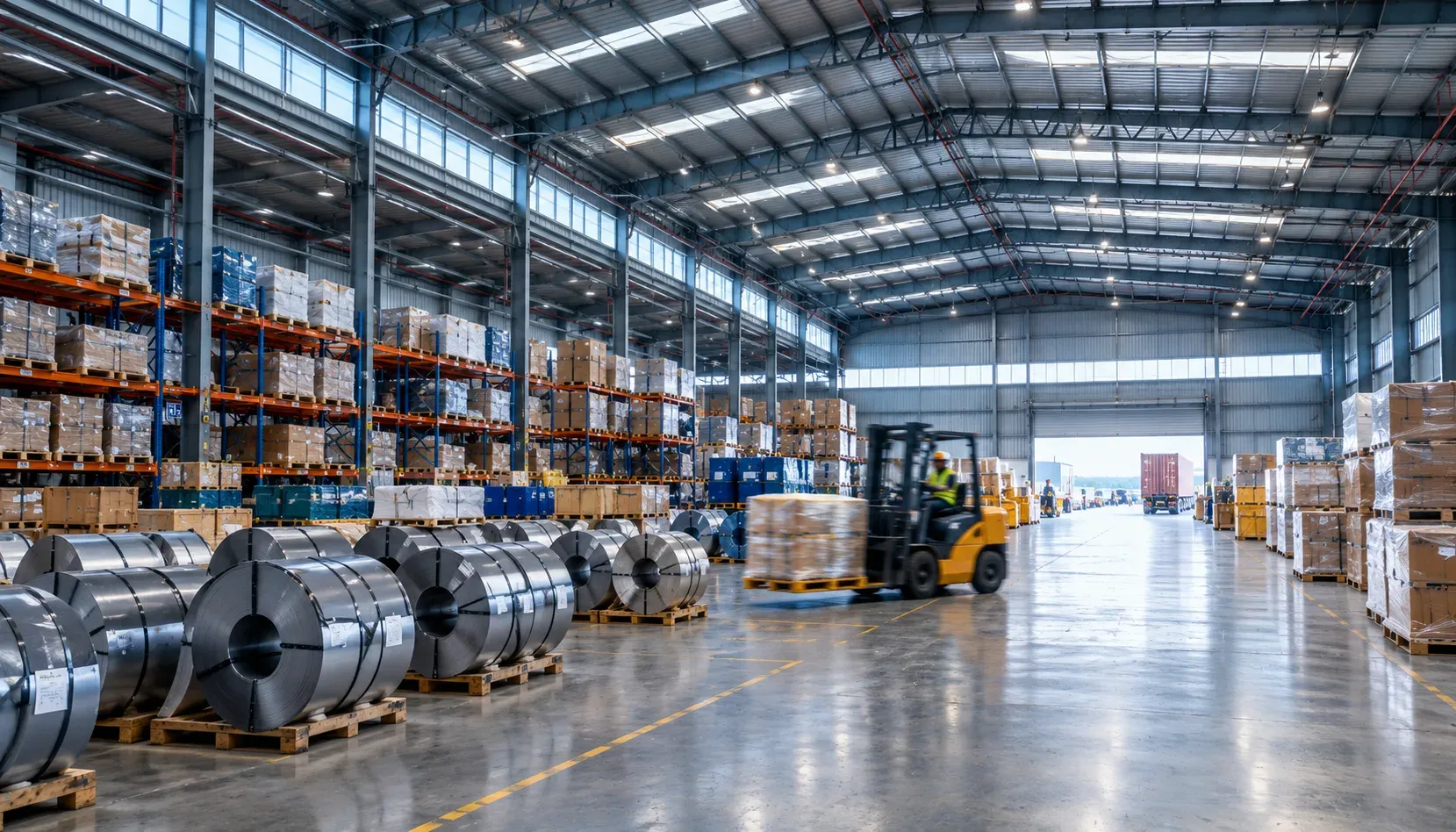

Storage & warehousing
Bonded and non-bonded storage within the port perimeter, all rated to 5 t/m².
-
TLPT Warehouse (formerly LMT) — Bonded
- 35,000 m² bonded open area & interlock
- 10,000 m² bonded covered warehouse
Load bearing 5 t/m² · Logistics and warehousing
-
TLPT Warehouse (formerly LMT) — Bonded & non-bonded
Bonded
- 5,000 m² covered warehouse
- 14,000 m² open yard & interlock
Non-bonded
- 5,000 m² covered warehouse
- 11,000 m² open yard & interlock
Load bearing 5 t/m² · Logistics and warehousing
-
TLP Terminal Open Yard
- 6,793 m² non-bonded open area (crusher run)
Load bearing 5 t/m² · Logistics and warehousing
-
LOSC (Langsat OSC Sdn Bhd)
- 72,000 m² bonded & non-bonded area
- 16,500 m² open yard interlock
- 11,000 m² bonded covered warehouse
- 4,400 m² office space
Load bearing 5 t/m² · Logistics and warehousing
Customs bonded zone
Langsat Marine Terminal
A 50-acre customs bonded area under Section 65 of the Customs Act 1967, located about 500 m from the centre of the Bulk & Break-Bulk Jetty. It comprises warehouses, open yards and industrial land, with on-site amenities including a cafeteria, meeting rooms, prayer room, convenience store and parking. Office space is available for rent. Operations run 24/7 under dedicated security.
LOSC
Regional marine supply base
Langsat OSC Sdn Bhd (LOSC) is a joint venture between Langsat Marine Base Sdn Bhd and OSC International Sdn Bhd, a subsidiary of Dubai-based Oilfields Supply Center Limited. LOSC operates an oilfield supply base serving offshore drilling, well operations, production, maintenance and modification.
- Offices
- Warehouses and open storage
- Oilfield logistics and utilities
- HSEQ management services
- Maintenance and technical support
- Waste management and stevedoring
